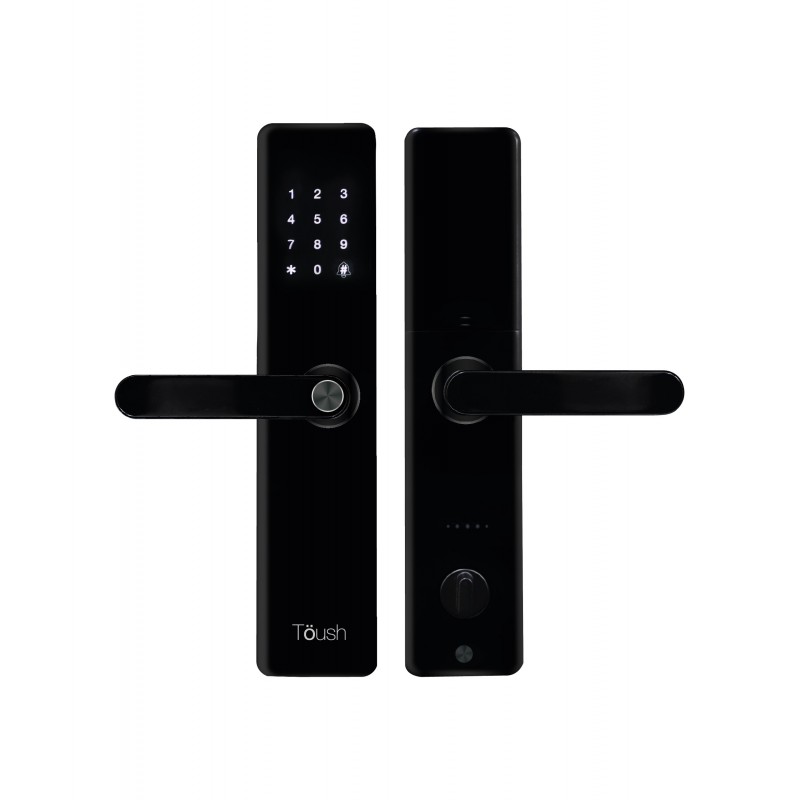

Toush Smart Digital Door Lock | T8401SDL

TOUSH Smart Digital Door Lock C/W Smartphone App, Voice Guide (Setup), RFID Card, Fingerprint Recognition, Number Pad, Mechanical Key, Door Bell Function, etc

Features:

• Material : Aluminum Alloy + Paint + IML Cover

• CPU : ST_ARM@Cortex-M08 digits micro controller

• Support 802.11b/g/n WPA/WPA2 safe mode

• Micro USB Emergency charging port

• Audio + Alarm (English) and Door Bell function

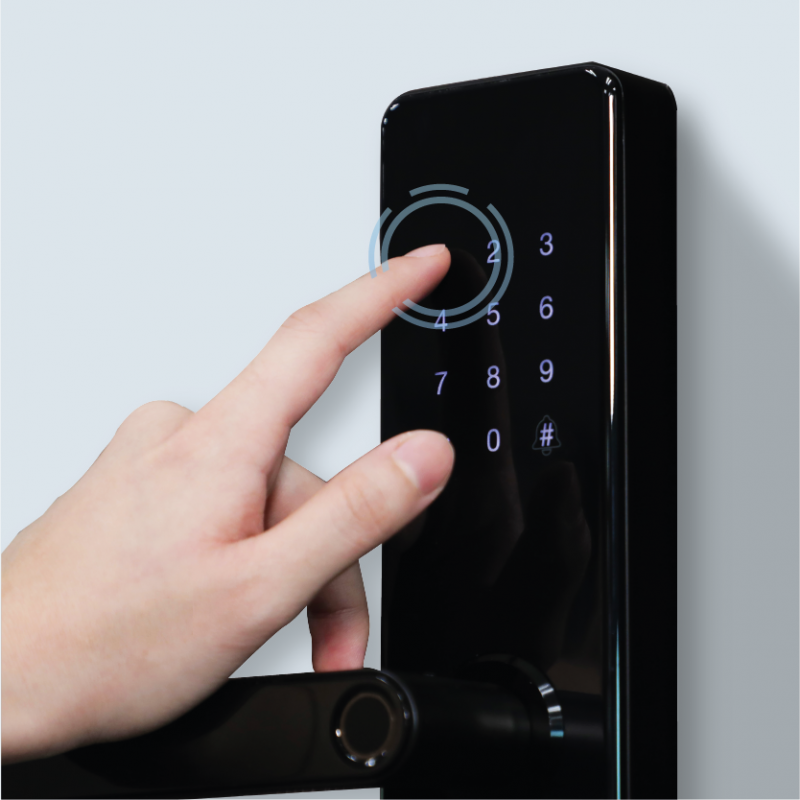

• Touch screen key pad

• C class Key

• DC motor clutch

• >30000 hours standby time

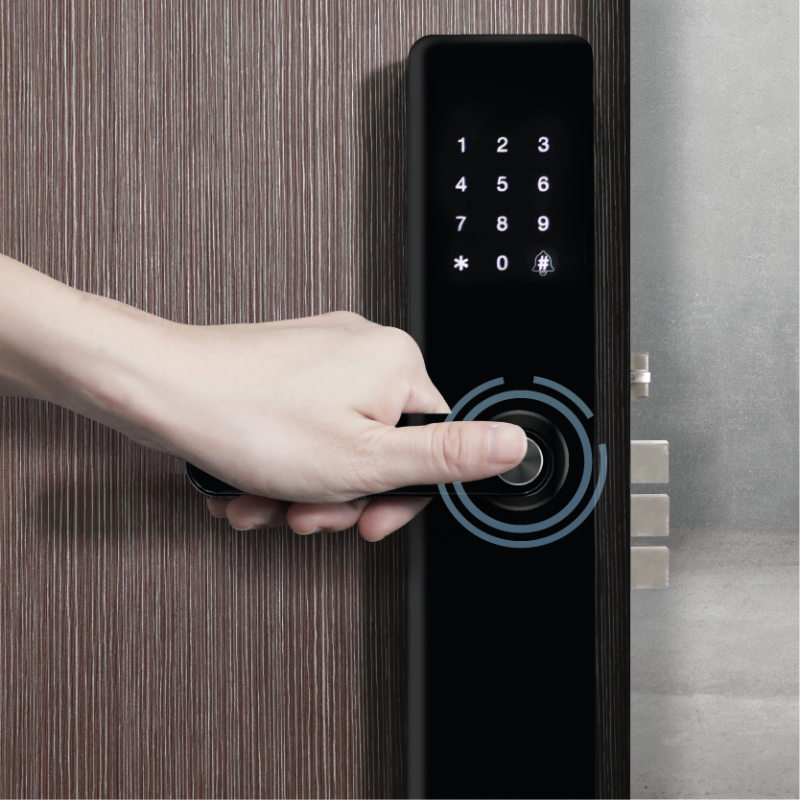

• Fingerprint / Password / NFC card / Key / App

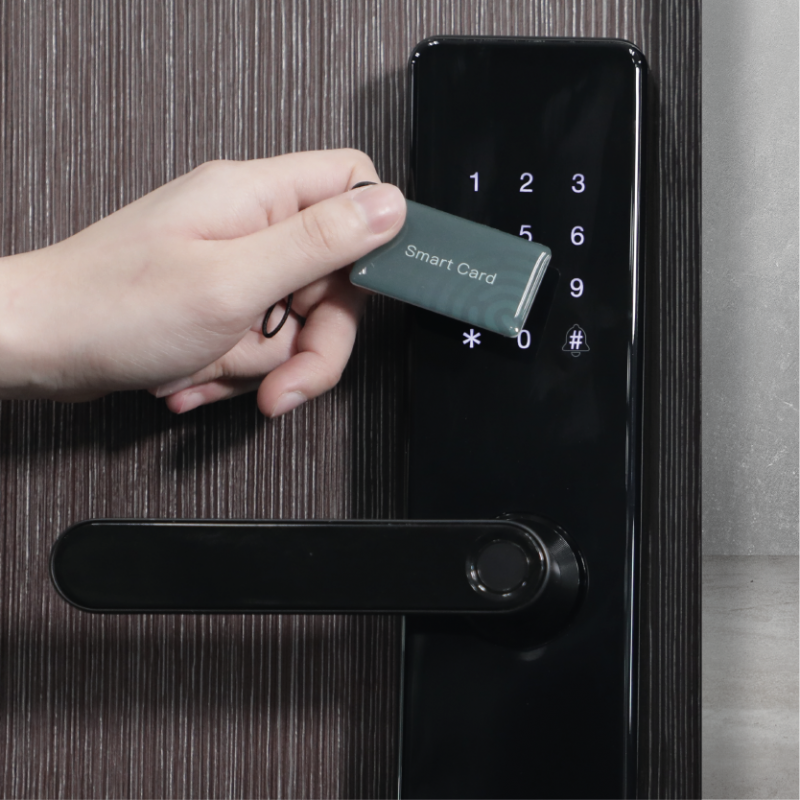

• NFC card 13.56Mhz work rate, 15mm card reading distance (Screen on), 6mm card reading distance (Screen Off)

• Support 4-10cm door thickness

• Anti-peeping password

• Temporarily password with specific valid date

• Can open about 50 times after low power alarm

• Password protect, continue 5 time mistype, auto lock for 180s

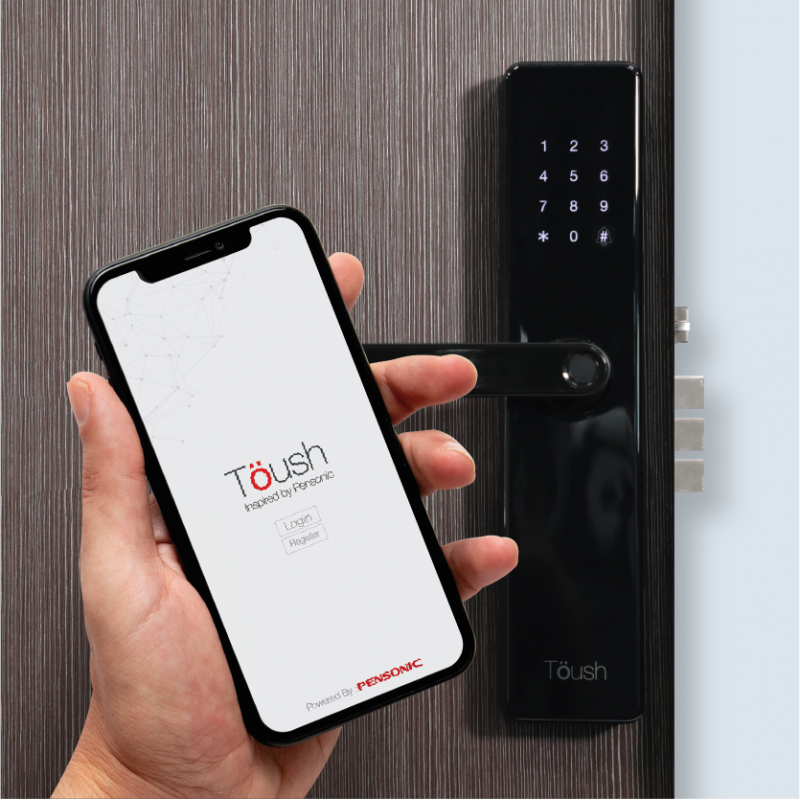

• App push notification for Alarm

• Support visual password with max 20 digits

• Password length 6-8 digit code

• 6068 lock body

  Specification:

• Voltage : 6V (4*1.5V AA batteries)

• Frequency : 48MHZ

• Standby Power : <50uA

• Capacity : 100ID (3 admin and 97 User)

Download Instruction Manual Here> WIFI Instruction Manual    Instruction Manual   Door Lock Measurement
