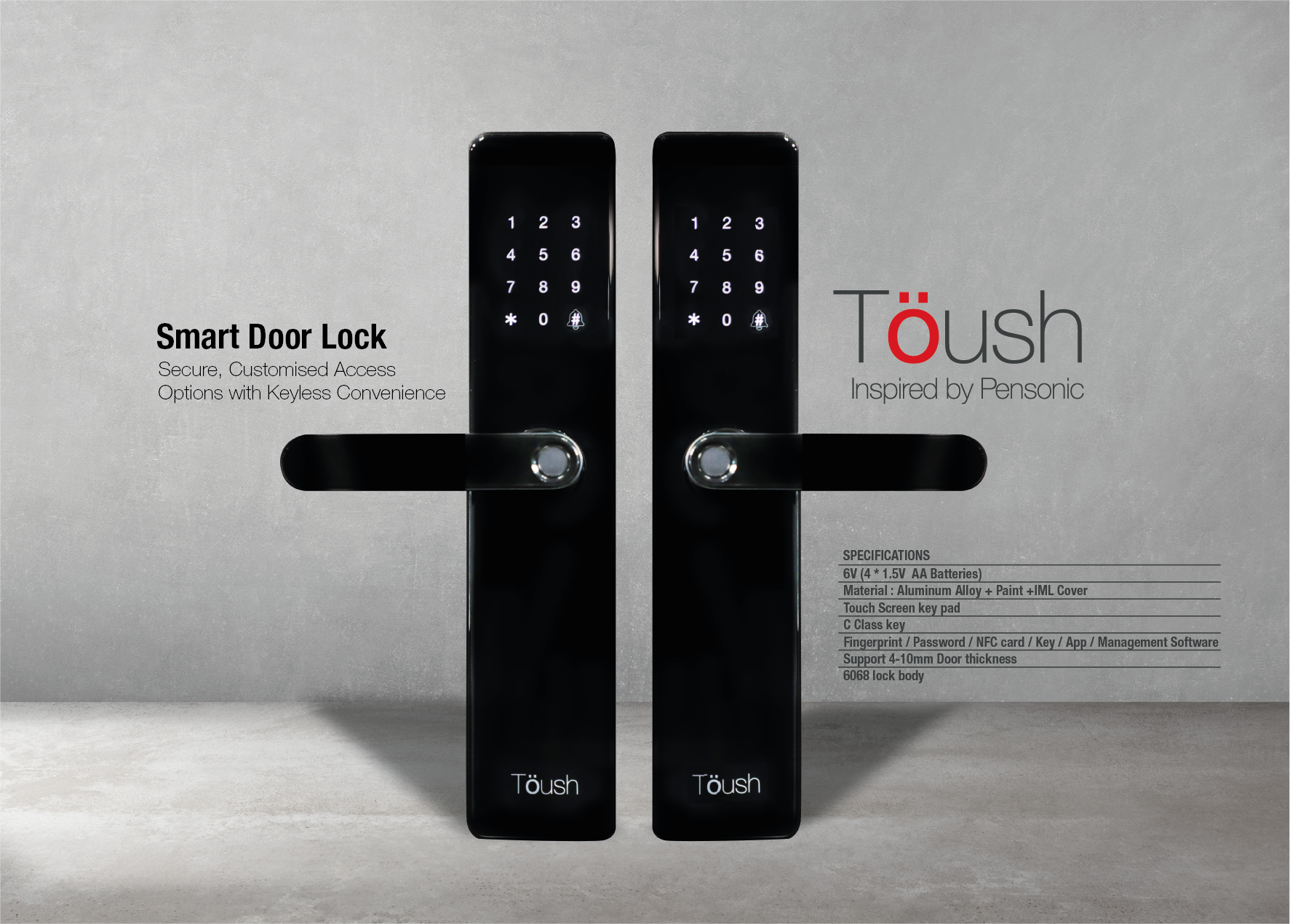

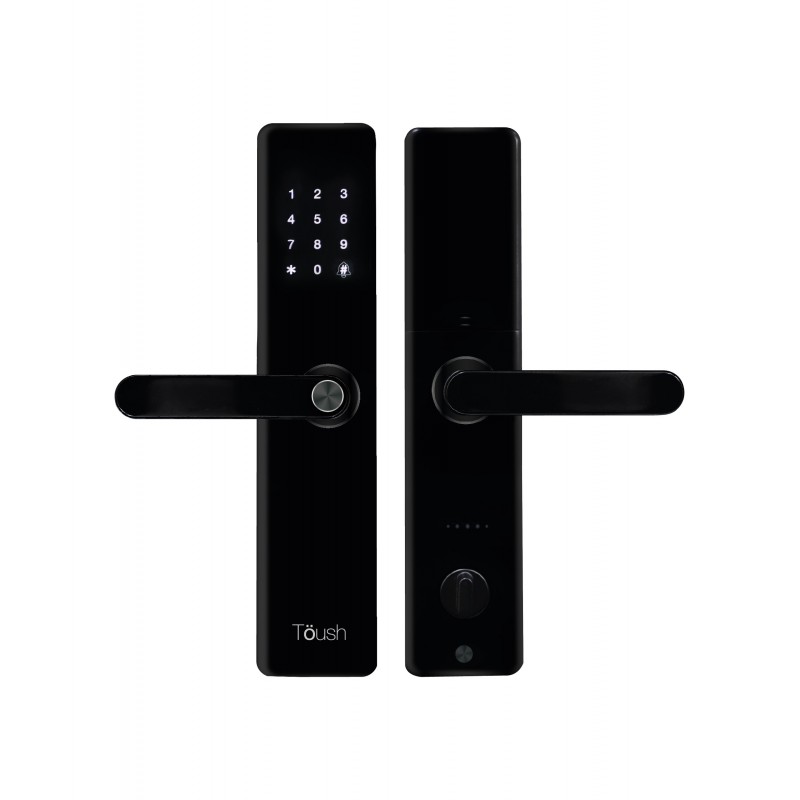

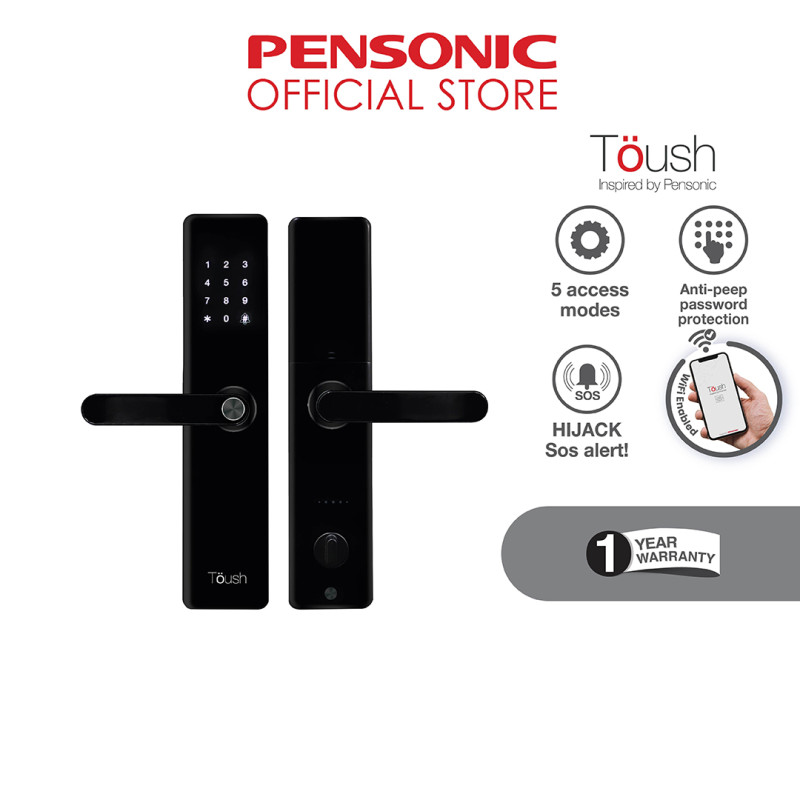

[NC] Toush Smart Digital Door Lock | T8401SDL

TOUSH Smart Digital Door Lock C/W Smartphone App, Voice Guide (Setup), RFID Card, Fingerprint Recognition, Number Pad, Mechanical Key, Door Bell Function, etc

Features:

• Material : Aluminum Alloy + Paint + IML Cover
• CPU : ST_ARM@Cortex-M08 digits micro controller
• Support 802.11b/g/n WPA/WPA2 safe mode
• Micro USB Emergency charging port
• Audio + Alarm (English) and Door Bell function

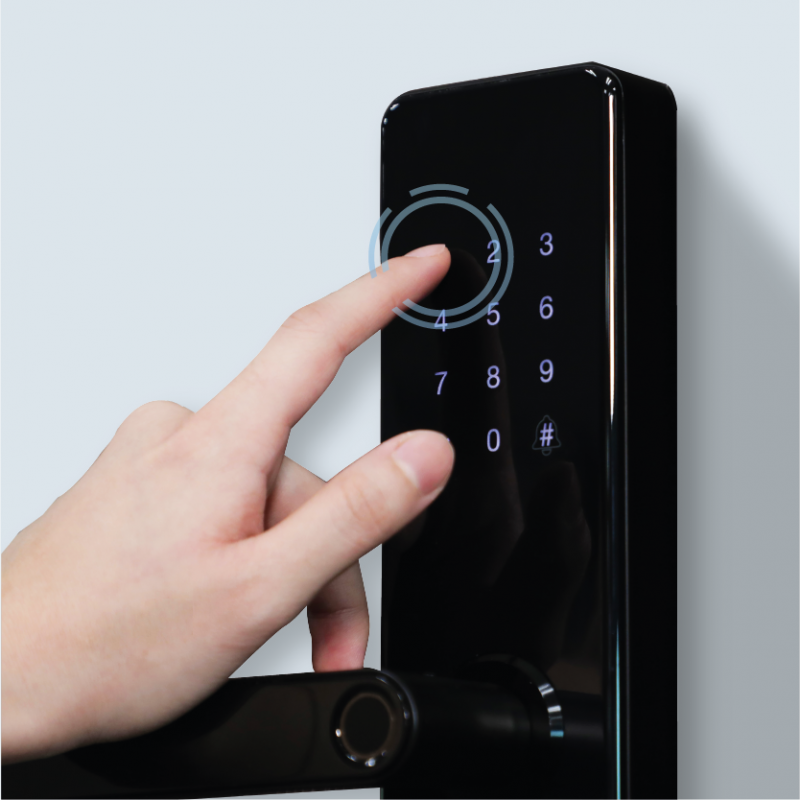

• Touch screen key pad
• C class Key
• DC motor clutch
• >30000 hours standby time

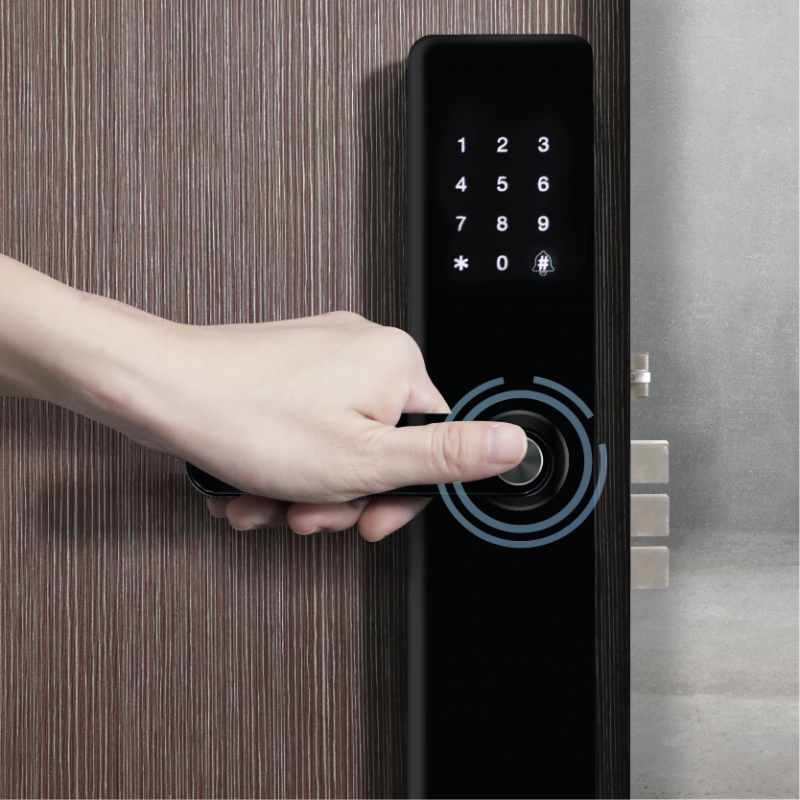

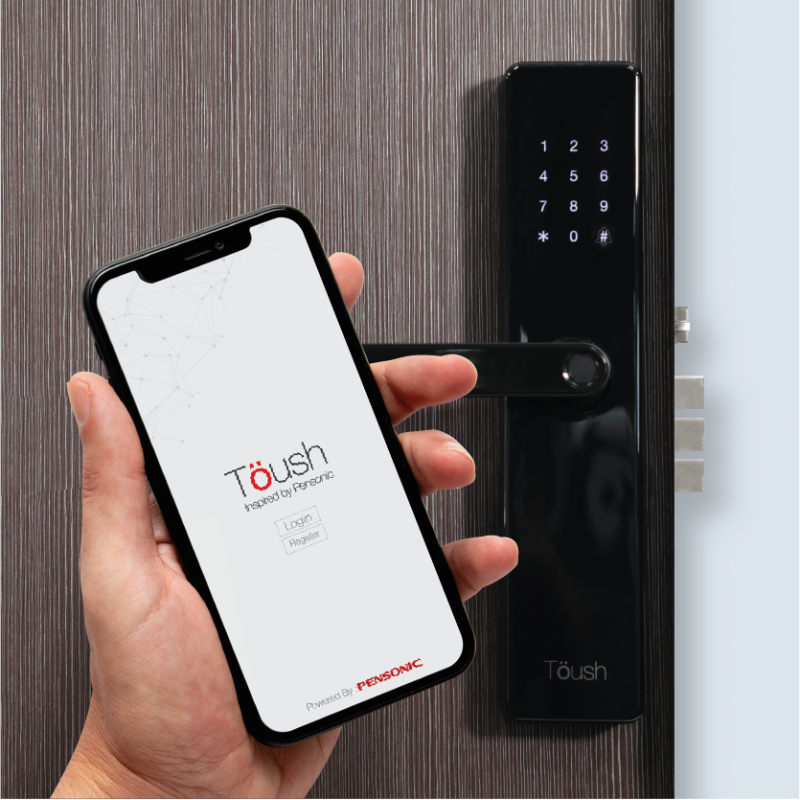

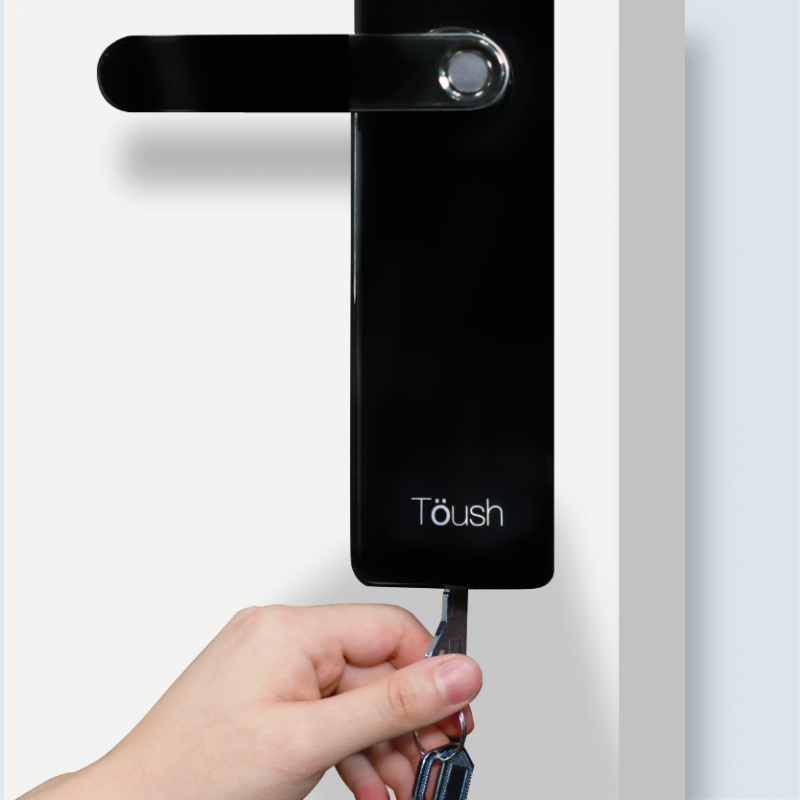

• Fingerprint / Password / NFC card / Key / App

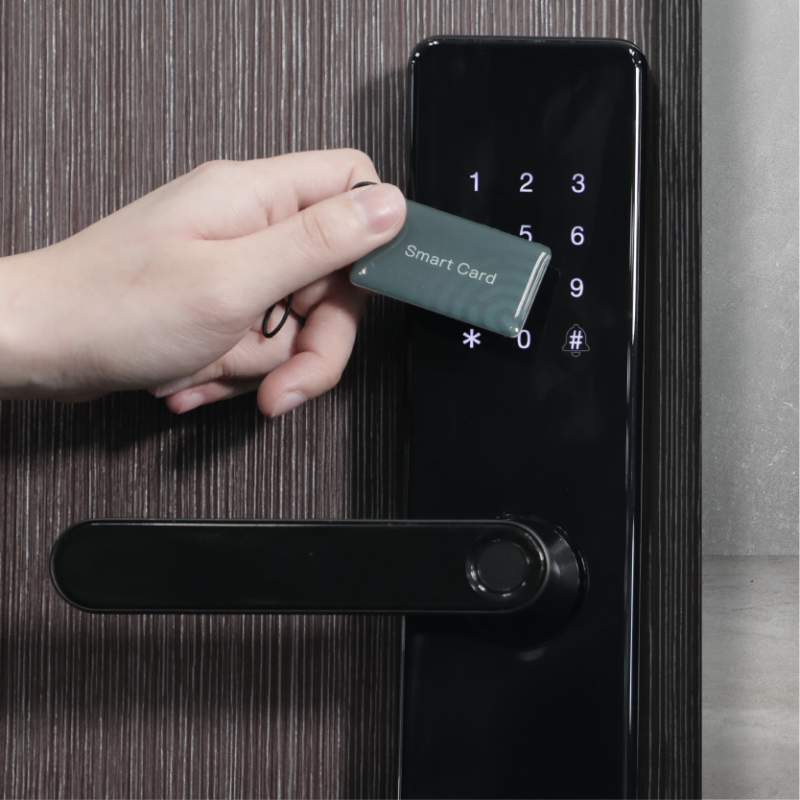

• NFC card 13.56Mhz work rate, 15mm card reading distance (Screen on), 6mm card reading distance (Screen Off)
• Support 4-10cm door thickness
• Anti-peeping password
• Temporarily password with specific valid date
• Can open about 50 times after low power alarm
• Password protect, continue 5 time mistype, auto lock for 180s
• App push notification for Alarm
• Support visual password with max 20 digits
• Password length 6-8 digit code
• 6068 lock body

  Specification:

• Voltage : 6V (4*1.5V AA batteries)
• Frequency : 48MHZ
• Standby Power : <50uA
• Capacity : 100ID (3 admin and 97 User)

Download Instruction Manual Here> WIFI Instruction Manual    Instruction Manual   Door Lock Measurement
